DSG102S hose crimping machine
DSG-102/S rubber pipe swaging machine produced by our factory is applicable to the crimping processing for the burst resisting hose, fiber tube and plastic pipe assembly used in the industry and agriculture and hydraulic transmission of engineering machinery. This machine has the following characteristics: small volume, light weight, having multifunction, rapid opening of die, being easy in operation, and convenient in maintenance.
This model pipe locking machine have 2 types for customer choice:

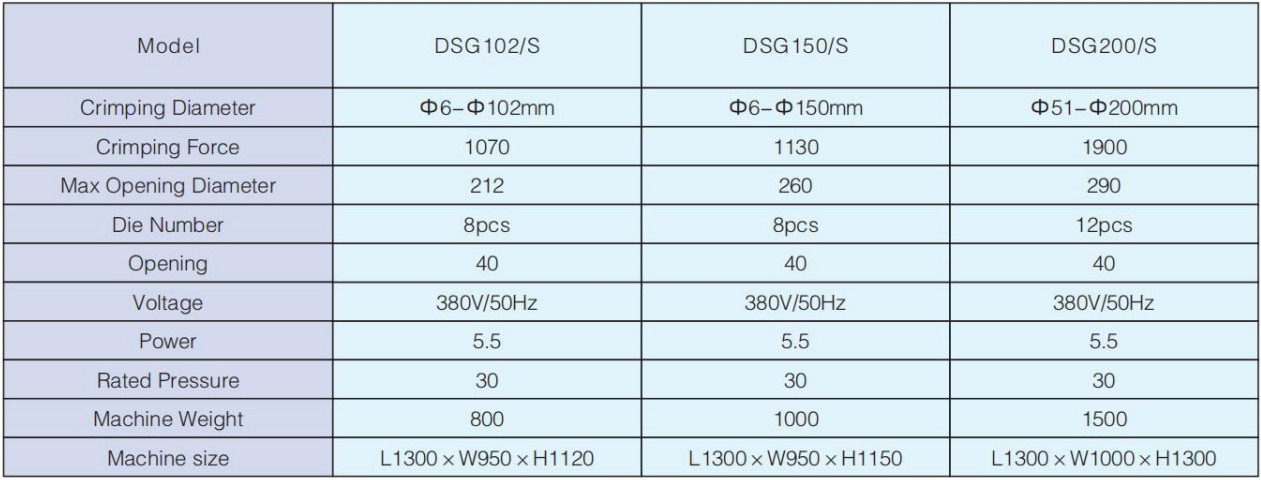

Main Technical Characteristics
1. Inside Diameter of Crimped Rubber Hose: 6 - 102 mm
2. Precision of Staff Gauge: 0.02 mm
3. Power of Electric Motor: 5.5 KW
4. Maximum Crimping Force: 1070 T
5. Rotating Speed: 1440 r/min
6. Output Volume of Oil Pump: 36 L/min
7. Capacity Oil Tank: 200 L
8. Overall Dimension: 1050 X 700 X 1550 (mm)
9. Weight: 1500 Kg
